Shadows for instanced models

Game_Starter · March 9, 2026, 2:51pm

Hi all,
I managed to create instances via hardware instancing and also added lights and shadows to them. The issue is, while they do cast shadows on non-instanced models, they do not cast shadows on each other. How would I ensure that they cast shadows on each other, e.g. one instanced tree casting its shadow on another instanced tree?

Here are the shaders I’m using:

Vertex:

#version 330
#define MAX_LIGHTS 1
uniform mat4 p3d_ModelViewProjectionMatrix;
uniform mat4 p3d_ModelViewMatrix;
uniform mat3 p3d_NormalMatrix;
uniform float osg_FrameTime;

uniform struct {
    sampler2DShadow shadowMap;
    mat4 shadowViewMatrix;
    vec4 color;
    vec4 position;
} p3d_LightSource[MAX_LIGHTS];

in vec4 vertex;
in vec3 p3d_Normal;
in vec2 texcoord;
in vec4 offseth;
in float rotation;
in float scale;
in vec3 color_tint;

out vec2 tcset;
out vec3 v_color;
out vec4 v_shadow_pos;
out vec3 v_normal_view;

void main() {
    float cosR = cos(rotation);
    float sinR = sin(rotation);

    // --- VERTEX TRANSFORMATION ---
    vec4 v = vertex * scale;
    v.w = 1.0;

    float sway_factor = clamp(v.z / 4.0, 0.0, 1.0);
    float phase = offseth.x + offseth.y;
    float sway = sin(osg_FrameTime * 1.5 + phase) * 0.5 * sway_factor;
    v.x += sway;

    // Apply rotation to position
    v.xy = mat2(cosR, -sinR, sinR, cosR) * v.xy;

    gl_Position = p3d_ModelViewProjectionMatrix * (v + offseth);

    // --- NORMAL TRANSFORMATION ---
    // 1. Start with the raw normal
    vec3 n = p3d_Normal;

    // 2. Apply the same rotation as the vertex (normals ignore translation/offset)
    n.xy = mat2(cosR, -sinR, sinR, cosR) * n.xy;

    // 3. Transform to View Space so it matches Panda's light positions
    // We use p3d_NormalMatrix to handle the camera's orientation
    v_normal_view = normalize(p3d_NormalMatrix * n);

    // --- SHADOWS & COLOR ---
    vec4 view_pos = p3d_ModelViewMatrix * (v + offseth);
    v_shadow_pos = p3d_LightSource[0].shadowViewMatrix * view_pos;

    float leaf_factor = clamp(v.z / 2.0, 0.0, 1.0);
    v_color = mix(vec3(1.0, 1.0, 1.0), color_tint, leaf_factor);
    tcset = texcoord;
}

Fragment:

#version 330
#define MAX_LIGHTS 1
uniform sampler2D p3d_Texture0;
out vec4 p3d_FragColor;

in vec2 tcset;
in vec3 v_color;
in vec4 v_shadow_pos;
in vec3 v_normal_view;

uniform struct {
  vec4 ambient;
} p3d_LightModel;

uniform struct {
    sampler2DShadow shadowMap;
    mat4 shadowViewMatrix;
    vec4 color;
    vec4 position;
} p3d_LightSource[MAX_LIGHTS];

void main() {
    vec4 tex = texture(p3d_Texture0, tcset);
    if(tex.a < 0.1) discard;


    //float shadow = textureProj(p3d_LightSource[0].shadowMap, v_shadow_pos);
    vec3 proj_coord = v_shadow_pos.xyz / v_shadow_pos.w;


    float shadow = texture(p3d_LightSource[0].shadowMap, proj_coord);


    if (proj_coord.x < 0.0 || proj_coord.x > 1.0 ||
        proj_coord.y < 0.0 || proj_coord.y > 1.0) {
        shadow = 1.0;
    }

    shadow=1-shadow;



    vec3 N = normalize(v_normal_view);

    vec3 L = normalize(p3d_LightSource[0].position.xyz);

    // Calculate how much the surface faces the light
    float diffuse_intensity = max(dot(N, L), 0.0);


    vec3 ambient = p3d_LightModel.ambient.rgb;


    vec3 direct = p3d_LightSource[0].color.rgb * diffuse_intensity * shadow;


    vec3 final_rgb = tex.rgb * v_color * (ambient + direct);

    p3d_FragColor = vec4(min(final_rgb, vec3(1.0)), tex.a);

    vec3 light_contrib = p3d_LightSource[0].color.rgb * diffuse_intensity * shadow;
    p3d_FragColor = vec4(tex.rgb * v_color * (p3d_LightModel.ambient.rgb + light_contrib), tex.a);
    //p3d_FragColor = vec4(tex.rgb * (p3d_LightModel.ambient.rgb + light_contrib), tex.a);

}

Thanks in advance.

serega-kkz · March 9, 2026, 3:23pm

I think the problem is that there are no instances in the shadow camera.

Game_Starter · March 9, 2026, 7:13pm

What do you mean by that? Do you mean doing this to the light:

            dlight = DirectionalLight('sun')
            dlight.set_color(Vec4(1, 1, 0.9, 1))

            # Setup Shadows
            dlight.set_shadow_caster(True, 2048, 2048)

            dlight.get_lens().set_film_size(220, 220)
            dlight.get_lens().set_near_far(50, 500)
            dlight.showFrustum()
            dlight.set_initial_state(RenderState.make(ShaderAttrib.make(shader)))
            dlnp = render.attach_new_node(dlight)
            dlnp.set_hpr(5, -75, 0)
            dlnp.setZ(370)
            render.set_light(dlnp)

Specifically with this: dlight.set_initial_state(RenderState.make(ShaderAttrib.make(shader)))
?
If so, that doesn’t really fix anything, in fact, all it does is make the entire area within the light’s frustum tinted with the shadow like this:

And with “.set_depth_offset(1)”

The instanced trees still don’t cast shadows on each other if I do that. Unless you meant something else?

rdb · March 11, 2026, 4:25pm

Use base.bufferViewer.toggleEnable() (bind it to a key) to open the buffer viewer, where you can see what the shadow camera “sees”. This will help you debug. Does the light only “see” one tree?

As I see it, there are one of two possibilities:

You’ve applied a shader to the shadow camera that overrides the one set on the objects that implements the instancing (to fix this, make sure the one applied to the object has a higher override value)
It’s got nothing to do with instancing, but just the frustum of the shadow camera that’s not configured correctly.

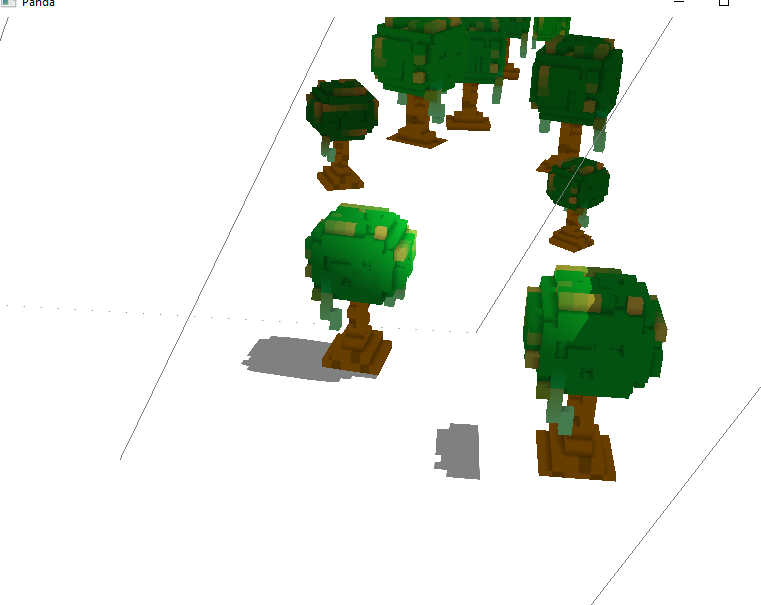

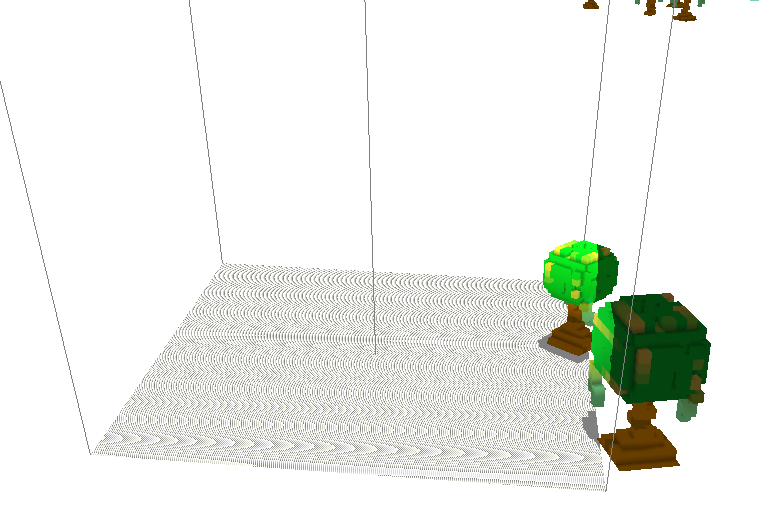

The shadow acne you’re seeing is a separate issue: that’s the result of you overriding the default state using set_initial_state. The default initial state applies a CullFaceAttrib that ensures only back faces are rendered, which prevents shadow acne. Instead, modify the default state instead of totally overriding it.

Game_Starter · March 11, 2026, 6:55pm

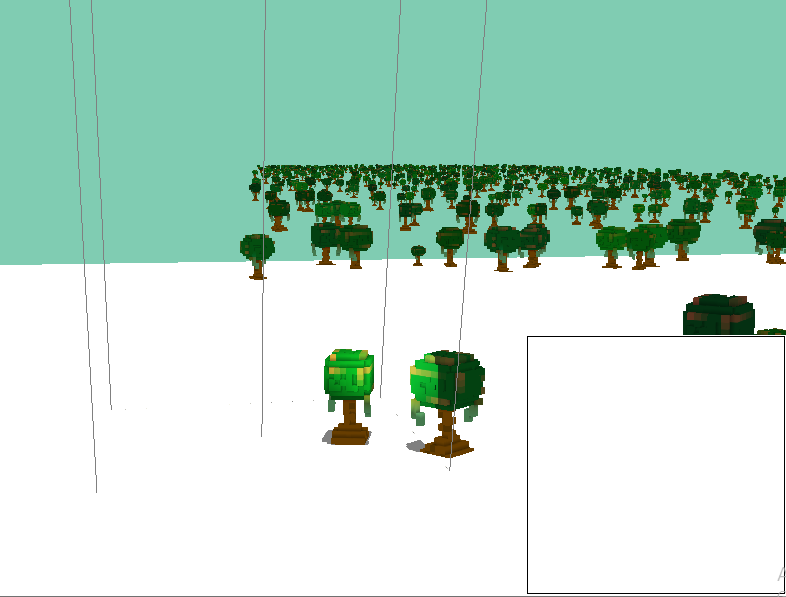

When I toggle the buffer viewer on, nothing is visible in it, even when I move the light that has set_shadow_caster(True, 2048, 2048) around. It’s a DirectionalLight. Here is a screenshot of what it looks like:

Could that be the issue? Should I post the entire snippet for you to see, it’s not that big, other than the shaders I posted in the first post, the python script just instances the trees, puts a flat plane to mimic the ground and adds a light. Barely 100 lines. The tree model is just 76kb too.

For the acne, since all I want is for everything to cast and receive a shadow when hit with the light, whether its an instance or not, I suppose I should just avoid using set_initial_state altogether?

rdb · March 12, 2026, 7:57am

If the shadow buffer looks white, either:

The objects are not being rendered at all
Your near/far range is so large that they are showing up as almost white and it’s hard to tell

Sure, I can take a look.

Indeed, you don’t have to use set_initial_state. The default should work well.

Game_Starter · March 12, 2026, 7:44pm

Alright, thank you very much. I attached everything in the zip, the tree model and its texture, the simple python code and the vertex and fragment shaders.

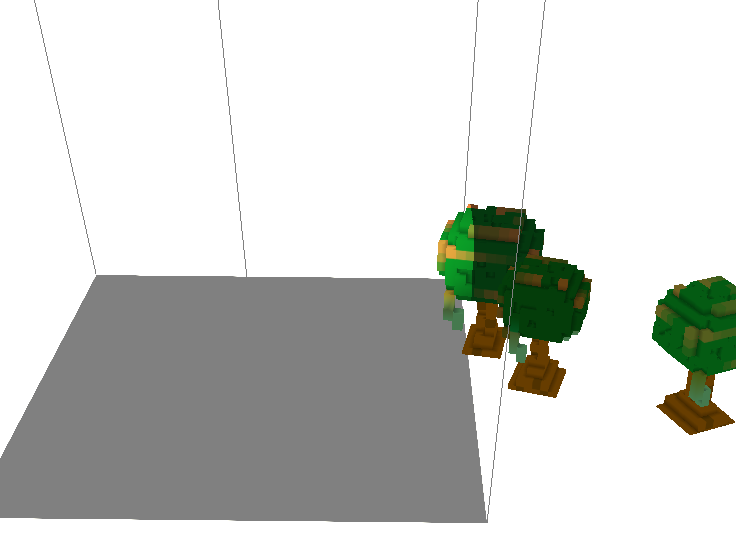

For the near far range, I doubt that’s the culprit, since this is what I set it to: dlight.get_lens().set_near_far(50, 500) .

forestShadows.zip (54.6 KB)

Game_Starter · March 15, 2026, 12:40pm

If you had wanted me to simply paste the code here, here it is, though I’d still have to include the tree-model, which is in the zip folder.
Python:

from direct.showbase.ShowBase import ShowBase
from panda3d.core import *
import random

class MyApp(ShowBase):
    def __init__(self):
        ShowBase.__init__(self)
        base.setBackgroundColor(0.5,0.8,0.7,1)
        node=self.loader.loadModel("tree_model.bam")
        if(node):
            node.reparentTo(render)
            NUM_INSTANCES = 1000

            shader = Shader.load(Shader.SL_GLSL, "tree.vert", "tree.frag")
            node.setShader(shader)
            gnode = node.node()

            iformat = GeomVertexArrayFormat()
            iformat.setDivisor(1)
            iformat.addColumn("offseth", 4, Geom.NT_stdfloat, Geom.C_other)

            rformat = GeomVertexArrayFormat()
            rformat.setDivisor(1)
            rformat.addColumn("rotation", 1, Geom.NT_stdfloat, Geom.C_other)

            sformat = GeomVertexArrayFormat()
            sformat.setDivisor(1)
            sformat.addColumn("scale", 1, Geom.NT_stdfloat, Geom.C_other)

            clformat = GeomVertexArrayFormat()
            clformat.setDivisor(1)
            clformat.addColumn("color_tint", 3, Geom.NT_stdfloat, Geom.C_color)

            format = GeomVertexFormat(gnode.getGeom(0).getVertexData().getFormat())
            format.addArray(iformat)
            format.addArray(rformat)
            format.addArray(sformat)
            format.addArray(clformat)
            format = GeomVertexFormat.registerFormat(format)

            vdata = gnode.modifyGeom(0).modifyVertexData()
            vdata.setFormat(format)

            poswriter = GeomVertexWriter(vdata.modifyArray(1), 0)
            rot_writer = GeomVertexWriter(vdata.modify_array(2), 0)
            scale_writer = GeomVertexWriter(vdata.modify_array(3), 0)
            color_writer = GeomVertexWriter(vdata.modify_array(4), 0)

            for i in range(NUM_INSTANCES):
                poswriter.add_data3((i % 60) * 70 + random.random() * 100, (i // 60) * 1200 + random.random() * 200, 0)
                # Rotation :
                angle = random.random() * 6.28
                rot_writer.add_data1(angle)
                # Scale:
                scale_writer.add_data1(0.5 + random.random() * 1.0)


                # Colour-tests:
                r = 0.7 + random.random() * 0.3
                g = 0.4 + random.random() * 0.4
                b = 0.1 + random.random() * 0.2

                color_writer.add_data3(r, g, b)

            poswriter = None
            rot_writer = None
            scale_writer= None
            color_writer= None
            vdata = None
            geom = None

            node.setInstanceCount(NUM_INSTANCES)

            node.node().setBounds(OmniBoundingVolume())
            node.node().setFinal(True)

            base.cam.set_pos(0, -30, 10)
            base.cam.look_at(0, 100, 0)


            #CardMaker generates the floor
            cm = CardMaker("floor")
            cm.setFrame(-1, 1, -1, 1)
            floor_np = render.attachNewNode(cm.generate())

            #Position and Orient
            floor_np.setP(-90)
            floor_np.setPos(500, 0, -28)
            floor_np.setScale(1500)

            #Color to White
            floor_np.setColor(1, 1, 1, 1)


            # Create the light
            dlight = DirectionalLight('sun')
            dlight.set_color(Vec4(1, 1, 0.9, 1))

            # Setup Shadows
            dlight.set_shadow_caster(True, 2048, 2048)
            #Define the shadow coverage area
            dlight.get_lens().set_film_size(220, 220)
            dlight.get_lens().set_near_far(50, 500)
            dlight.showFrustum()
            dlnp = render.attach_new_node(dlight)
            dlnp.set_hpr(5, -75, 0)
            dlnp.setZ(370)
            render.set_light(dlnp)


            #Ambient light:
            alight = AmbientLight('alight')
            alight.set_color((0.5, 0.5, 0.5, 1))
            alnp = render.attach_new_node(alight)
            render.set_light(alnp)

            render.set_shader_auto()
            self.accept("w",self.rotLight,[dlnp])
            self.accept("s",self.rotLightR,[dlnp])
            self.accept("o",self.viewBufferOn)

    def viewBufferOn(self):
        base.bufferViewer.toggleEnable()

    def rotLightR(self,sentligt):
        sentligt.setP(sentligt.getP()+5)

    def rotLight(self,sentligt):
        sentligt.setX(sentligt.getX()+5)

app = MyApp()
app.run()

Vertex shader:

#version 330
#define MAX_LIGHTS 1
uniform mat4 p3d_ModelViewProjectionMatrix;
uniform mat4 p3d_ModelViewMatrix;
uniform mat3 p3d_NormalMatrix; // Standard model-space to view-space matrix
uniform float osg_FrameTime;

uniform struct {
    sampler2DShadow shadowMap;
    mat4 shadowViewMatrix;
    vec4 color;
    vec4 position; // Panda3D provides light direction/position in View Space
} p3d_LightSource[MAX_LIGHTS];

in vec4 vertex;
in vec3 p3d_Normal; // The raw normal from the .egg file
in vec2 texcoord;
in vec4 offseth;
in float rotation;
in float scale;
in vec3 color_tint;

out vec2 tcset;
out vec3 v_color;
out vec4 v_shadow_pos;
out vec3 v_normal_view; // Passing normal to fragment shader

void main() {
    float cosR = cos(rotation);
    float sinR = sin(rotation);

    // --- VERTEX TRANSFORMATION ---
    vec4 v = vertex * scale;
    v.w = 1.0;

    float sway_factor = clamp(v.z / 4.0, 0.0, 1.0);
    float phase = offseth.x + offseth.y;
    float sway = sin(osg_FrameTime * 1.5 + phase) * 0.5 * sway_factor;
    v.x += sway;

    // Apply rotation to position
    v.xy = mat2(cosR, -sinR, sinR, cosR) * v.xy;

    gl_Position = p3d_ModelViewProjectionMatrix * (v + offseth);

    // --- NORMAL TRANSFORMATION ---
    // 1. Start with the raw normal
    vec3 n = p3d_Normal;

    // 2. Apply the same rotation as the vertex (normals ignore translation/offset)
    n.xy = mat2(cosR, -sinR, sinR, cosR) * n.xy;

    // 3. Transform to View Space so it matches Panda's light positions
    // We use p3d_NormalMatrix to handle the camera's orientation
    v_normal_view = normalize(p3d_NormalMatrix * n);

    // --- SHADOWS & COLOR ---
    vec4 view_pos = p3d_ModelViewMatrix * (v + offseth);
    v_shadow_pos = p3d_LightSource[0].shadowViewMatrix * view_pos;

    float leaf_factor = clamp(v.z / 2.0, 0.0, 1.0);
    v_color = mix(vec3(1.0, 1.0, 1.0), color_tint, leaf_factor);
    tcset = texcoord;
}

Fragment shader:

#version 330
#define MAX_LIGHTS 1
uniform sampler2D p3d_Texture0;
out vec4 p3d_FragColor;

in vec2 tcset;
in vec3 v_color;
in vec4 v_shadow_pos;
in vec3 v_normal_view; // From the updated vertex shader

uniform struct {
  vec4 ambient;
} p3d_LightModel;

uniform struct {
    sampler2DShadow shadowMap;
    mat4 shadowViewMatrix;
    vec4 color;
    vec4 position; // Panda3D provides light direction/position in View Space
} p3d_LightSource[MAX_LIGHTS];

void main() {
    vec4 tex = texture(p3d_Texture0, tcset);
    if(tex.a < 0.1) discard;

    // 1. SHADOW LOGIC
    //float shadow = textureProj(p3d_LightSource[0].shadowMap, v_shadow_pos);
    vec3 proj_coord = v_shadow_pos.xyz / v_shadow_pos.w;

    // 2. THE CRITICAL FIX: Remap from [-1, 1] to [0, 1]
    // This aligns your vertex position with the shadow map pixels
    //proj_coord = proj_coord * 0.5 + 0.5;
    //proj_coord = proj_coord * 0.5 + 0.5;

    // 3. Apply Bias to fix the "static noise" (Shadow Acne)
    //proj_coord.z = 10.101;

    // 4. Sample using vec3 (U, V, Depth_to_compare)
    float shadow = texture(p3d_LightSource[0].shadowMap, proj_coord);

    // 5. Boundary Guard: If outside the light's box, it's NOT in shadow
    if (proj_coord.x < 0.0 || proj_coord.x > 1.0 ||
        proj_coord.y < 0.0 || proj_coord.y > 1.0) {
        shadow = 1.0;
    }

    shadow=1-shadow;
    //if (!in_frustum) shadow = 1.0;

    // 2. LIGHTING (DIFFUSE) LOGIC
    vec3 N = normalize(v_normal_view);
    // For DirectionalLight, .w is usually 0, and .xyz is the direction
    vec3 L = normalize(p3d_LightSource[0].position.xyz);

    // Calculate how much the surface faces the light
    float diffuse_intensity = max(dot(N, L), 0.0);

    // 3. COMBINE EVERYTHING
    vec3 ambient = p3d_LightModel.ambient.rgb;

    // Direct light is now affected by BOTH the angle (diffuse) and the shadow
    //shadow=1.0;
    vec3 direct = p3d_LightSource[0].color.rgb * diffuse_intensity * shadow;

    // Apply color_tint (v_color) to the texture
    vec3 final_rgb = tex.rgb * v_color * (ambient + direct);

    p3d_FragColor = vec4(min(final_rgb, vec3(1.0)), tex.a);

    vec3 light_contrib = p3d_LightSource[0].color.rgb * diffuse_intensity * shadow;
    p3d_FragColor = vec4(tex.rgb * v_color * (p3d_LightModel.ambient.rgb + light_contrib), tex.a);
    //p3d_FragColor = vec4(tex.rgb * (p3d_LightModel.ambient.rgb + light_contrib), tex.a);

}

treeModel.zip (51.1 KB)

Game_Starter · March 27, 2026, 3:34pm

Okay, so I found a fix, but I have to create everything manually, create lights and shadows manually for all of it to work. That way I can certainly confirm that everything is within the relevant frustums and so on. Not sure if I should post all the code here, but I did it by creating 4 different shaders: 2 that deal with the instanced models and 2 that deal with the non-instanced models. I then used tags to differentiate between the 2 like this:

        floor_np.set_shader(Shader.load(Shader.SL_GLSL, "shadow_caster_static.vert", "shadow_caster.frag"))
        tree.set_shader(Shader.load(Shader.SL_GLSL, "shadow_caster.vert", "shadow_caster.frag"))


        self.LCam.node().set_tag_state_key("CasterType")
        static_caster = Shader.load(Shader.SL_GLSL, "caster_static.vert", "caster.frag")
        inst_caster = Shader.load(Shader.SL_GLSL, "caster.vert", "caster.frag")

        self.LCam.node().set_tag_state("Static", RenderState.make(ShaderAttrib.make(static_caster)))
        self.LCam.node().set_tag_state("Instanced", RenderState.make(ShaderAttrib.make(inst_caster)))

        floor_np.set_tag("CasterType", "Static")
        tree.set_tag("CasterType", "Instanced")

That’s the key point that made all the difference and now, the shadows appear to be working properly, both for instanced and non-instanced models.

rdb · April 4, 2026, 8:16am

Sorry, I’ve been busy lately. It sounds like you already figured out the solution though - that does sound like the way to do it.

Game_Starter · April 9, 2026, 9:50am

No problem, we all appreciate the work you do here, since this is related to this issue, I humbly ask that the example on advanced shadows that comes in the samples have glsl shaders too, not just cg, which is mostly unused nowadays.

Alexander_krack · April 20, 2026, 1:13am

I might be a bit late to this forum as you seem to have found and an answer, but I also had this same issue a while back and wanted to share my solution. My solution was to abandon panda3ds default lighting and make my own from scratch with depth buffers through GraphicsOutput. This is definitely more work, but it a great solution if you want to further customize your lighting and have complete control. This would require you to make your own custom render pipeline but then would only require one shader not to separate ones and you would no longer need to have tag states on your cameras.
